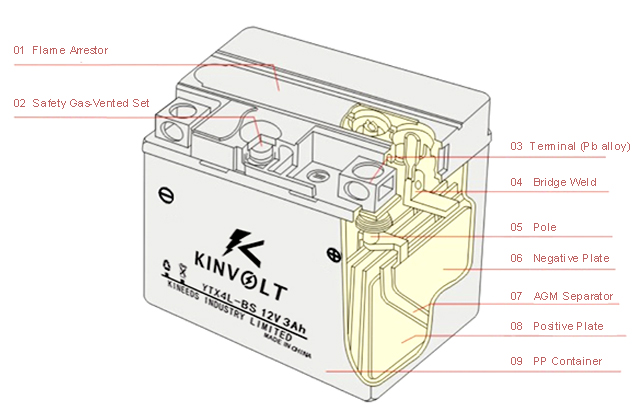

Battery Structure for MF type
| Part No. | Component | Features |
|---|---|---|
| 01 | Flame Arrestor |
Relieves the possibility of sparks entering the battery |
| 02 | Safety Gas-Vented Set | Relieves excessive pressure and eliminates explosion |
| 03 | Terminal (Pb alloy) | Sealed Post prevents seepage and corrosion |
| 04 | Bridge Weld | Thru-partition construction shortens current path, reduces internal resistance for higher cranking power |
| 05 | Pole | —— |
| 06 | Negative Plate | —— |
| 07 | AGM Separator | Absorbs acid and makes the battery spill-proof |
| 08 | Positive Plate | —— |
| 09 | PP Container | Polypropylene container resists gas, oil and negative impact |
