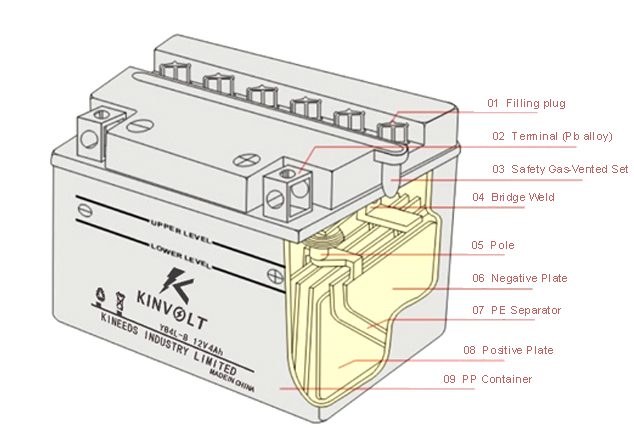

Battery Structure of N & YB type
| Part No. | Component | Features |
|---|---|---|
| 01 | Filling plug | — |
| 02 | Terminal (Pb alloy) | Sealed Post prevents seepage and corrosion |
| 03 | Safety Gas-Vented Set | Relieves excessive pressure and eliminates explosion |
| 04 | Bridge Weld | Thru-partition construction shortens current path, reduces internal resistance for higher cranking power |
| 05 | Pole | — |
| 06 | Negative Plate | — |
| 07 | PE Separator | Glass Fiber Mat separator resist vibration damage and prolong battery life |
| 08 | Positive Plate | — |
| 09 | PP Container | Polypropylene container resists gas, oil and negative impact |
